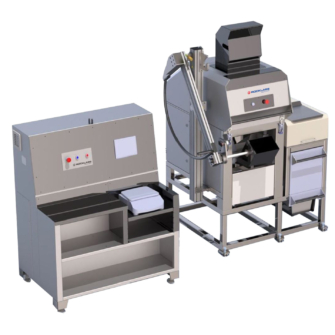

Rocklabs Smart Mid Boyd LSD
The Rocklabs Smart Mid Boyd LSD achieves a higher degree of splitting accuracy and is able to split smaller samples with the same accuracy as larger samples. The operator can select two splits of different weights as well as a retained waste sample.
The Rocklabs Smart Mid Boyd LSD achieves a higher degree of splitting accuracy and is able to split smaller samples with the same accuracy as larger samples. The operator can select two splits of different weights as well as a retained waste sample.
The combo can be equipped with a barcode scanner, have pre-set splitting programs and retain data/sample logging details.
Benefits:
- No manual split adjustment
- Less operator input
- Optional waste feeder
- Sample can be discharged in specialized container (Chrysos, ABM etc.)
- Can accept sample weights as low as 250g
- Also available as a Twin Smart Boyd
| Specifications | Details |
Output Sample (Crush) | 90% passing 2mm (Single Pass) |
Dispense Options | - Option 1: Dispense directly into ABM Sample Cup - Option 2: Dispense directly into Chrysos Jar (weight-based filling) |
| Sample Weights | As low as 250g |
| Voltage Supply | - 220-250V, 50-60Hz - 380-480V, 50-60Hz |
| Air Supply | NA |
| Dust Extraction | - 2x extraction ports (Ø50mm) - Velocity: 15-20m/s |
| Input Size | <100mm |
| Output | 2mm |
| Jaw Width | 300mm |
| Capacity | 7kg |
| Shipping | |
| Width x Height x Depth | 1500 x 2150 x 3000mm |
| Weight | 1080kg |
