Rocklabs Smart BOYD LSD

The Rocklabs Smart BOYD LSD combo combines the BOYD Crusher with a Linear Sample Divider (LSD) controlled by a Programmable Logic System (PLC) allowing an operator to pre-weigh samples and select the suitable split weights. It is capable of variable splits in one pass.

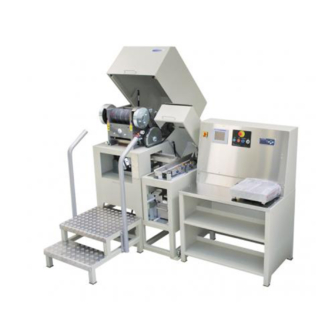

Smart BOYD LSD Hero2 1440x1440

The Rocklabs Smart BOYD LSD achieves a higher degree of splitting accuracy and is able to split smaller samples with the same accuracy as larger samples. The operator can select two splits of different weights as well as a retained waste sample.

The combo can be equipped with a barcode scanner, have pre-set splitting programs and retain data/sample logging details.

  • No manual split adjustment
  • Less operator input
  • Optional waste feeder
SpecificationsBOYD CrusherLinear Sample Divider (LSD)
Motor Power5.5 kW, 3 Phase0.09 kW, 3 Phase
Maximum input lump size50mm10mm
Product Size-2mm (+80%)n/a
Width x Height x Depth694 x 1440 x 1070mm380x816x792mm
Jaw Width300mmn/a
Dust Extraction1 extraction port available (Ø50mm)1 extraction port available (Ø50mm)
  • Raiser Platform & Stairs
  • Manual Sample Lifting Arm
  • Automated Dumpmaster Lifter & Large Capacity Hopper
  • Waste feeders or conveyor interface
  • Waste Sample Bagger
  • Data Logging Software
  • Keyboard & Barcode Scanner
  • Sample 1 Bin
  • Sample 2 Bin, or Bypass bin for single splitting
  • Waste Bin (or bypass bin for waste feeder/conveyor options)
  • Split configuration & weight or % selection are adjustable in software
WarrantyRocklabs Smart BOYD LSD combo is sold with a 2000 operating hours or one year warranty (which ever comes first), covering all parts (excluding wear parts) and labour if used under normal laboratory conditions.
Wear PlatesHigh Chrom IronThe wear plates are very resistant to abrasion. In many laboratories one set of plates will last for more than 1 year. Jaw plates can be turned top to bottom to extend the life.
Standard deviation of samples %
DividingCone quartering6.810
Scoop Sampling5.140
Riffle Splitting1.010
Table Sampling2.090
Rotating Splitting0.125
Random Variation0.076

Shipping DimensionsSMART BOYD LSDControl Console
Width x Height x Depth1400 x 1900 x 1400mm1300 x 1600 x 900mm
