Rocklabs RM2000

Reliable, safe and robust, the Rocklabs M2000 Mk3 is designed to process large samples up to 1.5kg down to -75 micron.

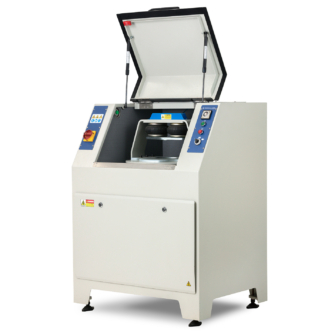

RM2000 Gallery 2 1440x1440

The RM2000 has a powder coated metal cabinet, full safety interlocks, two hand clamping procedure and ROCKLABS unique bowl clamping mechanism that does away with the need for costly rubber inserts. It also features an optional pneumatically operated lifting mechanism to allow the safe transfer of bowls in and out of the pulveriser.

  • Two handed head clamping operation
  • Two airbags for superior head location
  • New head location plate, hard wearing & reversible
  • Dust extraction pickup
  • New pneumatic control valve and airbag clamp plate
  • Range of smaller heads: 350 - 1000gms

Specifications

Motor power

2.2kW, Single phase or three phase

Maximum input lump size

10mm maximum

Product size

Pulverized to - 75µm

Width x Height x Depth

1210 x 1800 x 700mm

Weight

390kg

Sample size

200g - 1500g

Dust extraction

Built-in air extraction fan & dust extraction pickup

Options

Pneumatic Lifting device

Warranty

ROCKLABS standard equipment is warranted against manufacturing defects for the period of one year, or the first 2000 operating hours, whichever comes first. The warranty period commences on the date of dispatch. During the warranty period, any machine component proven to have a manufacturing defect causing premature failure will be replaced, at no charge for the replacement part. Freight terms are EX WORKS for all warranty replacement parts (all costs relating to shipping, customs charges, duties, taxes and insurance are the customers’ responsibility from dispatch at Rocklab’s facility). This warranty does not cover failure due to accidents, abuse, misuse, or use of non-ROCKLABS parts & heads, negligence or acts of God.

Head Options

Carbon

1500g

Chrome

1500g

Shipping Dimensions

Width x Height x Depth

1115 x 1460 x 930mm

Weight

420kg
