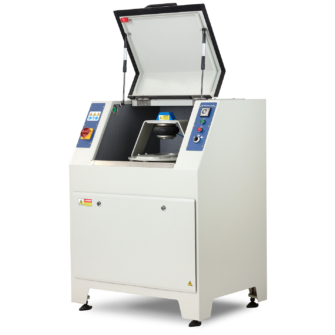

Rocklabs RM1000

The Rocklabs RM1000 batch pulveriser is used for pulverizing a variety of material from 1-1000g for subsequent analysis by instrumental methods or wet chemistry.

RM1000 Hero 1440x1440

The Rocklabs RM1000 is is reliable, safe and robust and designed to process samples with a final size of <75 microns. Featuring strong construction and requiring little maintenance, the Rocklabs RM1000 has two clamping options available, a Pneumatic Airbag clamp and the Rotoclamp Mechanical clamp.

The Rocklabs RM1000 has smaller head options which can be used with an adaptor plate.

– 1 phase or 3 phase power supply
– Smaller head options can be used with an adaptor plate
– Very low contamination of samples
– Quiet operation
– Low capital cost, long life


Motor power

1.1kW, 3 phase or single phase

Maximum input particle size

Recommended 2-5mm sample, 8mm maximum

Product size

Samples can be pulverized <75µm

Sample size

1g - 1000g

Width x Height x Depth

1210 x 1800 x 700mm




Pneumatic Airbag clamp (requires compressed air), Rotoclamp


Rocklabs standard equipment is warranted against manufacturing defects for the period of one year, or the first 2000 operating hours, whichever comes first.

Head Options

Carbon / Chrome

40 - 1000

Tungsten Carbide / Zirconia

40 and 200


50 and 200

Shipping Dimensions

Width x Height x Depth

1115 x 1460 x 930mm
