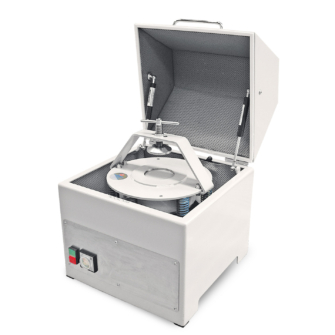

Rocklabs Bench Top Ring Mill

The Bench Top Ring Mill is a quiet and efficient pulveriser. Designed to be mounted on a work bench, it is a more compact version of the standard ring mill.

Benchtop Ring Mill1440x1440

Featuring strong construction and requiring little maintenance, the Bench Top Ring Mill can be used for pulverising a variety of material from 1g - 100g for subsequent analysis by instrumental methods or wet chemistry.

  • Small and compact
  • Very low contamination of samples
  • Low maintenance
  • Noise level less than 80 dBA

Specifications

ProductMotor power0.18kW, 3 phase or single phase
Maximum input particle sizeRecommended 2-5mm sample, 8mm maximum
Product sizeTypically 95% - 100µm, samples can be pulverized <75µm
Width x Height x Depth410 x 510 x 410mm
Weight67kg
Sample size1g - 100g
Dust extractionn/a
Optionsn/a
WarrantyROCKLABS Bench Top Ring Mill is sold with a 2000 operating hours or one year warranty (whichever comes first), covering all parts (excluding wear parts) and labour if used under normal laboratory conditions.
Head OptionsCarbon / Chrome40
Carbon / Chrome100
Tungsten Carbide40
Zirconia40
Shipping DimensionsWidth x Height x Depth665 x 685 x 610mm
Weight80kg

Rocklabs Bench Top Ring Mill Brochure (English)
