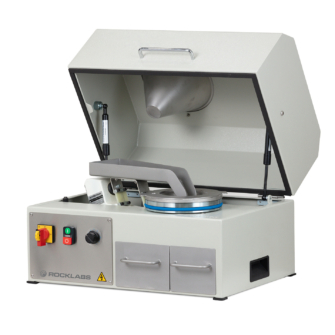

Rocklabs Benchtop RSD

The Rocklabs Benchtop RSD (Rotating Sample Divider) is designed to be placed on a work bench and can be used in conjunction with Benchtop Ring Mill.

Btrsd 1440x1440px

The Rocklabs Benchtop RSD features sealed bearings and takes a representative split of any proportion from 2-50%. Get a representative split of sample and remainder.

Taking a representative split is not as simple as many people believe. Rolling on a mat, multiple grabs or riffle splitting do not produce accurate results.

Benefits:
– Robust design
– Easy operation
– Sealed bearings
– Two representative splits
– Compact to sit on work bench

Specifications

Motor power

0.1kW, single phase


Maximum input particle size

10mm


Width x Height x Depth

600 x 450.2 x 420mm


Weight

58.82kg


Hopper capacity

5kg


Dust extraction

n/a


Options

n/a


Warranty

ROCKLABS Bench Top RSD is sold with a 2000 operating hours or one year warranty (whichever comes first), covering all parts (excluding wear parts) and labour if used under laboratory conditions.


Comments on taking

a representative split

Taking a representative split from a large sample is not as simple as many people believe. Rolling on a mat, multiple grabs or riffle splitting do not produce accurate results. A classic study* conducted at Bradford University demonstrated that a rotating sample divider provided the best results.

* Critical evaluation of powder sample procedures. Allen T and Khan A. A, The chemical Engineer, May 1979, pp108 - 112

Standard deviation of samples %

Dividing

Cone and quartering

6.810

Scoop sampling

5.140

Riffle splitting

1.010

Table sampling

2.090

Rotating splitting

0.125

Random Variation

0.076

Shipping Dimensions

Width x Height x Depth

675 x 640 x 625mm

Weight

75kg
