Washer Cabinet Assembly Line

The Scott Washer Cabinet Assembly Line is a fully automatic assembly with a 20s cycle time. Brackets are loaded automatically by a robot, guided by a vision system. Featuring reliable clinch joints with an intelligent security system, consistent with CE this system is also very quiet at 75 dBa.

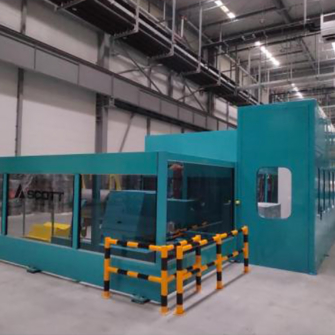

Washer cabnet assembly line 1 1440x1440


  • Fully automatic cabinet clinch line.
  • Brackets loading automatically by robot guided by the vision system.
  • Automatic feet screw feeding by bowl-feeder, fitted with accurate torque control.
  • The clinch line adopted BTM tools and a special hydraulic and mechanical mechanism designed by Scott.


  • The total length of the equipment is 22 meters, and the production cycle time can reach 20 seconds.


  • The equipment will be fully protected, with transparent sliding protective doors connected to the machine and interlocked with a safety lock, monitored by a safety PLC. Other openings will be protected by light curtain to meet the required safety standards in Scott.


  • Standard, advanced, stable structure design mode by Scott.
  • Tools automatic orientation.
  • Reliable Clinch system.


  • Quiet with 75 dba noise.
Laundry equipment y 1 2060x1320


Scott provides high volume, robust, flexible, scalable, adaptable manufacturing and assembly systems with the latest industry 4.0 technology and quality that last the test of time. We have many systems in operation that have produced more than 20 million products.
