Rocklabs BOYD Elite

The ROCKLABS BOYD Elite is the world’s first double-acting fine jaw crusher, employing jaws that can hold up to 5kg of sample and crush a 70mm sample to 2mm in a single pass.

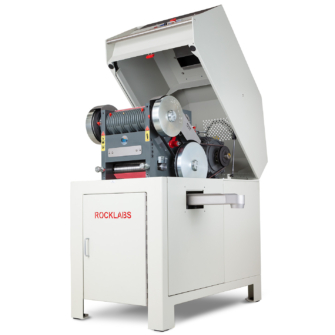

BOYD Elite Hero 1440x1440

Featuring top and bottom moving jaws, the design of the Rocklabs BOYD Elite delivers the maximum amount of crushing, reducing samples by 35 times the original size. Characterised by ease of maintenance and cleaning and equipped with stringent safety mechanisms as standard, the BOYD Elite reduces the time and cost associated with the crushing process.

  • Jaws can hold up to 5kg of sample
  • 70mm sample can be crushed to 2mm in a single pass.
  • Jaw gap can be easily adjusted and wear plates can be rotated to extend useful life
  • Safety switch stops operation on cover opening
  • Easy to clean and maintain

The Boyd Elite is also available with optional Rotating Sample Divider (RSD)

The Rocklabs BOYD RSD Elite combines a double-acting fine jaw crusher with a Rotating Sample Divider for a one-step crushing and splitting process.

In the BOYD RSD, a sample is loaded into a BOYD Crusher and crushed finely before being transported to the Rotating Sample Divider (RSD) via a vibratory feeder. The RSD stands alongside the BOYD Crusher and splits out a pre-set portion for pulverising.


BOYD Elite Gallery 1 1440x880

Specifications

Details
Motor power5.5kW, 3 phase
Maximum input lump size70mm
Product Size-2mm passing up to 90% (sample size dependant)
Width x Height x Depth694 x 1330 x 1070mm
Weight520kg
Jaw Width300mm
Dust ExtractionSuperior Dust Removal (2 ports) and containment
OptionsRaiser Platform, Mechanical bin lifter, RSD, Smart RSD and Smart LSD
WarrantyROCKLABS BOYD Crusher is sold with a 3000 operating hours or 18 month warranty (whichever comes first), covering all parts (excluding wear parts) and labour if used under normal laboratory conditions.
Wear PlatesHigh Chrome Iron

The wear plates are very resistant to abrasion. In many laboratories one set of plates will last more than 1 year. Jaw plates can be turned top to bottom to extend life.

Shipping DimensionsDetails
Width x Height x Depth825 x 1500 x 1275mm
Weight750kg
