Rocklabs BIG BOYD
Rocklabs larger-model BOYD Crusher – the BIG BOYD Crusher - employs double-acting fine jaw crushers to process samples of up to 20kg.
The BOYD Crusher is the world’s first double-acting, fine jaw crusher. Its design includes top and bottom driven moving jaws, enabling the maximum amount of crushing in a single pass. The Big BOYD Crusher takes lump sizes of up to 150mm pieces and crushes them to 10mm or less in a single pass, reducing time for every sample.

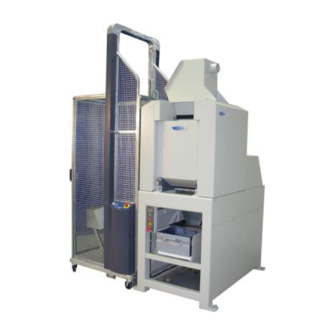

The Big Boyd Crusher is also available in a second option the Big Boyd 2 (BYDB2), where the sample loading device is designed to handle heavy samples.
- Jaws can hold up to 20kg of sample as one load
- 150mm sample can be crushed to 10mm, or less, in a single pass
- Quick jaw adjustment with horizontal steel rollers
- Ideal for inclusion into an automated system
- Emergency stop button
| Specifications | Big Boyd Option 1 | Big Boyd Option 2 |
| Motor Power | 11Kw, 3 Phase | 11Kw, 3 Phase |
| Max Input Lump Size | 150mm | 150mm |
| Product Size | -10mm (+80%) | -10mm (+80%) |
| Width x Height x Depth | 874 x 1545 x 1477 | 2050x3010x1480 |
| Weight | 1650kg | 1650kg |
| Jaw Width | 400mm | 400mm |
| Dust Extraction | n/a | n/a |
| Options | Sample lifter, Waste Sample Conveyor, Hopper | Rotating Sample Divider |
| Warranty | ROCKLABS Big BOYD Crusher is sold with a 2000 operating hours or one year warranty (whichever comes first), covering all parts (excluding wear parts) and labour if used under normal laboratory conditions. | ROCKLABS Big BOYD Crusher is sold with a 2000 operating hours or one year warranty (whichever comes first), covering all parts (excluding wear parts) and labour if used under normal laboratory conditions. |
| Wear plates | Big Boyd Option 1 | Big Boyd Option 2 |
| High Chrome Iron | The wear plates are very resistant to abrasion. In many laboratories one set of plates will last for more than 1 year. Jaw plates can be turned top to bottom to extend life. | The wear plates are very resistant to abrasion. In many laboratories one set of plates will last for more than 1 year. Jaw plates can be turned top to bottom to extend life. |
| Shipping Specifications | Big Boyd Option 1 | Big Boyd Option 2 |
| Width x Height x Depth | Crate 1: 1400 x 1540 x 1700mm | Crate 1: 1800 x 900 x 1480mm Crate 2: 1880 x 1210 x 1180mm Crate 3: 3430 x 1120 x 1340mm |
| Weight | Crate 1: 1820kg | Crate 1: 1776kg Crate 2: 452kg Crate 3: 517kg |
